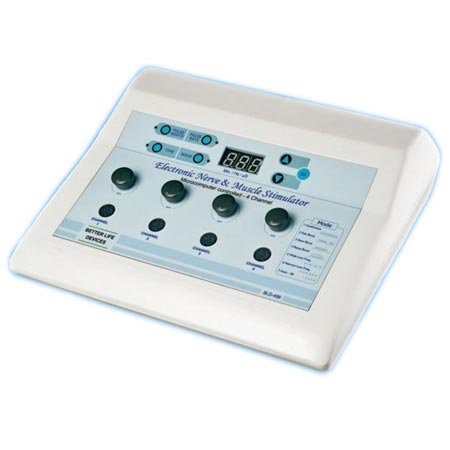

N.M.S 498 Multi-Current Stimulator – Channel 4

• Four Channel.
• Microcomputer controlled digital unit.
• Four Body areas treatment simultaneously
• Seven Preset programs for easy selection
• Digital display of countdown time
4 channel, 8 Electrodes
3 T.. E.. N.. S modes: Synchronous, Constant, Alternate
2 E.. M.. S modes: Synchronous, Alternate
Pulse width: 30 – 300 μS, (10 μS / step)
Pulse rate: 1 – 150 Hz, 45 adjustable frequencies
On ramp: Adjustable 1 – 6 seconds
Cycle ON time: Adjustable 1 – 30 seconds
Cycle OFF time: Adjustable 1 – 30 seconds
Waveform: Asymmetrical biphasic square pulse
Timer: 1 – 60 min. (1 min. / step)
Power supply : 90-220VAC, 50/60HZ

T.. E.. N.. S Applications

Low back pain
Cervical spasms/pain Shoulder pain
Hip strain Foot or ankle pain

E.. M.. S Applications

Wrist strengthening
Intrinsic strengthening
Grip strengthening
Quadriceps strengthening
Anterior shoulder subluxation
Upper trap spasm
Shoulder weakness
Tibialis strengthening
ACL reconstruction
Fibromyalgia

Carbon Electrodes Resuable : 08 Nos.
Lead Wires : 04 Nos.
AC Cord : 01 No.
Instruction Manual : 01 No.
Elastic Belts : 06 Nos.
Gel Bottle : 01 No.
Gross weight with packing : 4kg
